Data sources

A data source is a saved connection: which database to connect to and how. dbdesk keeps the list in a file (see Where dbdesk keeps its files) and passwords in your system’s keychain, never in that file.

Adding one

Click + at the top of the explorer (or New data source on the Welcome tab) and choose PostgreSQL, SQLite, MySQL / MariaDB, SQL Server, DuckDB or ClickHouse.

Every kind has:

• Name — how it appears in the explorer. Leave it empty and dbdesk names it for you: database@host for a server, the file name for SQLite.
• Colour — optional. The colour tints the data source’s row in the explorer, the tabs of its consoles and a band along the top of each console. Giving production a red and your local copy nothing makes it hard to run something in the wrong place.
• Safety — how careful dbdesk is with the data. See Safety levels.

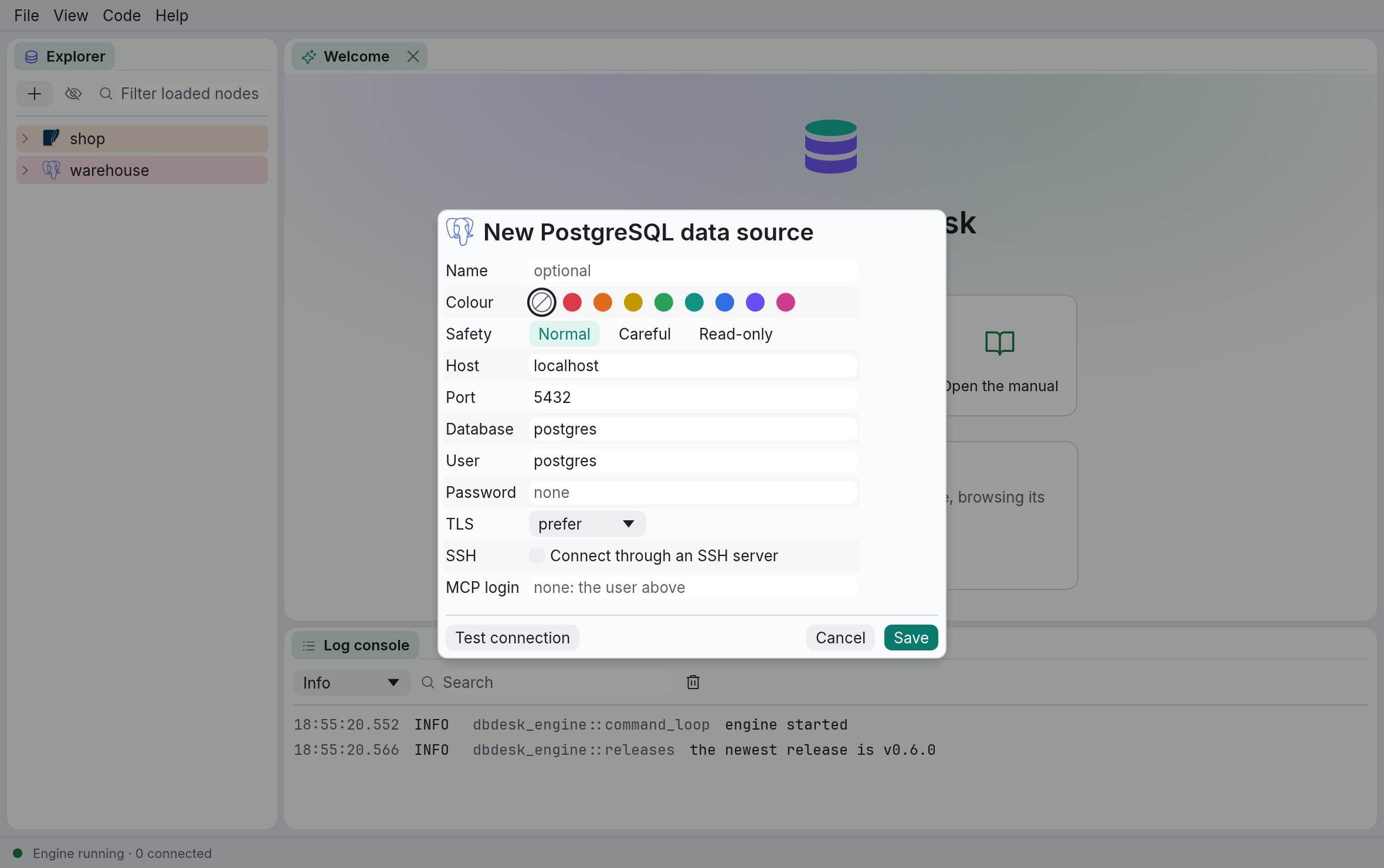

PostgreSQL adds:

TLS

TLS encrypts the connection, which hosted databases usually require. The modes are the ones PostgreSQL’s own tools call sslmode, so a provider’s connection guide reads the same:

prefer and require keep anyone on the network from reading what you send, but not from pretending to be the server. Use verify-full for anything that matters.

With verify-full, a CA file row appears. Leave it empty for servers whose certificate is signed by a public authority (the same ones web browsers trust). For a private or self-signed certificate, give the authority’s certificate as a PEM file, typed or picked with Browse…: for example the bundle your cloud provider publishes for its managed databases. The Host must be a name (or IP address) the certificate lists.

dbdesk encrypts with rustls, so there is no OpenSSL to install. Client certificates aren’t supported yet.

MySQL / MariaDB has the same fields as PostgreSQL, with these defaults:

One data source type serves both: dbdesk tells MySQL and MariaDB apart once it connects, and Test connection says which it found (“Connected to MariaDB 11.4.4”).

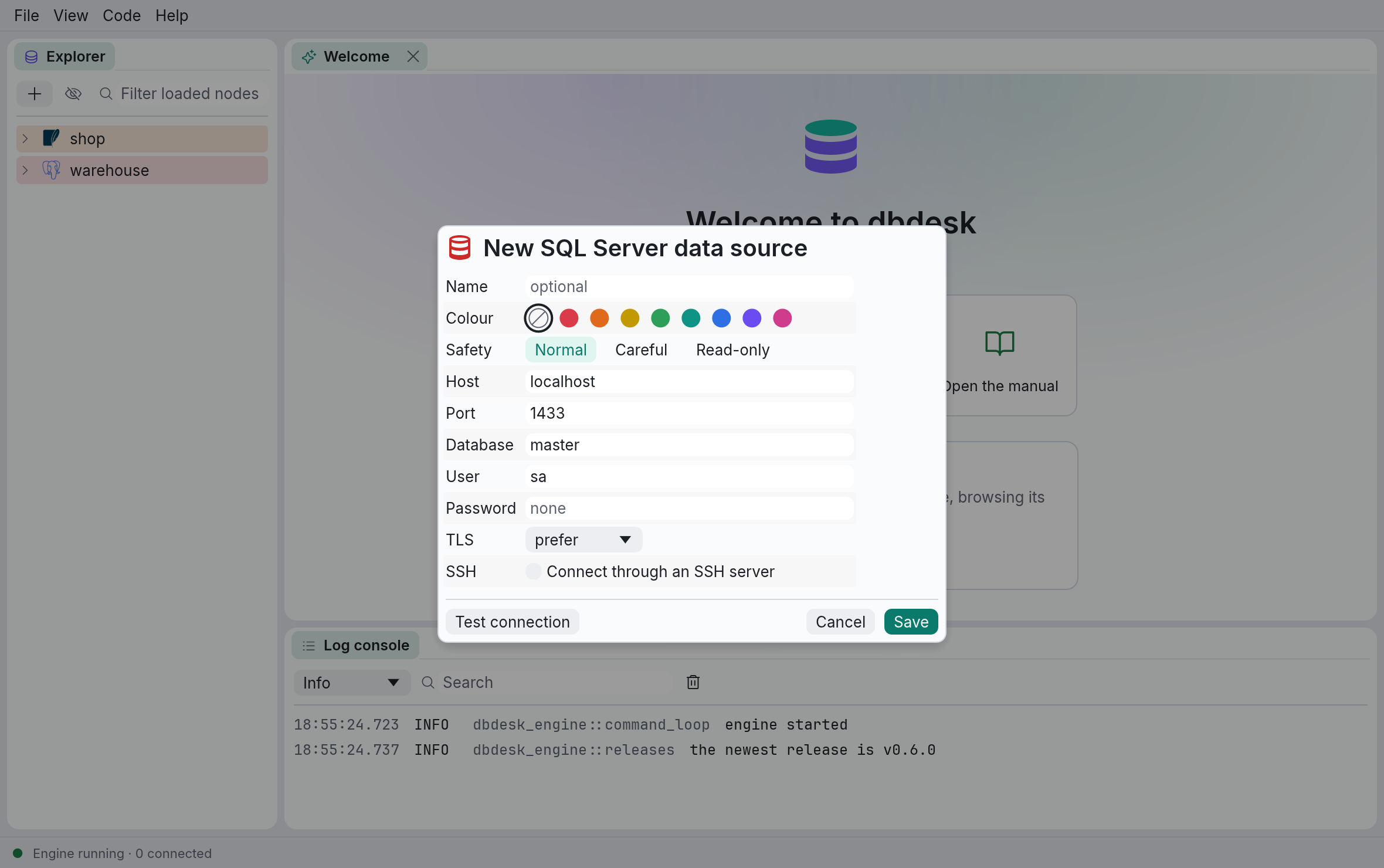

SQL Server has the same fields too, for SQL Server and Azure SQL, with these defaults. It has no MCP login, since MCP clients can’t use SQL Server yet.

Test connection says which server it reached (“Connected to SQL Server 16.0.4305.5”; 16 is SQL Server 2022).

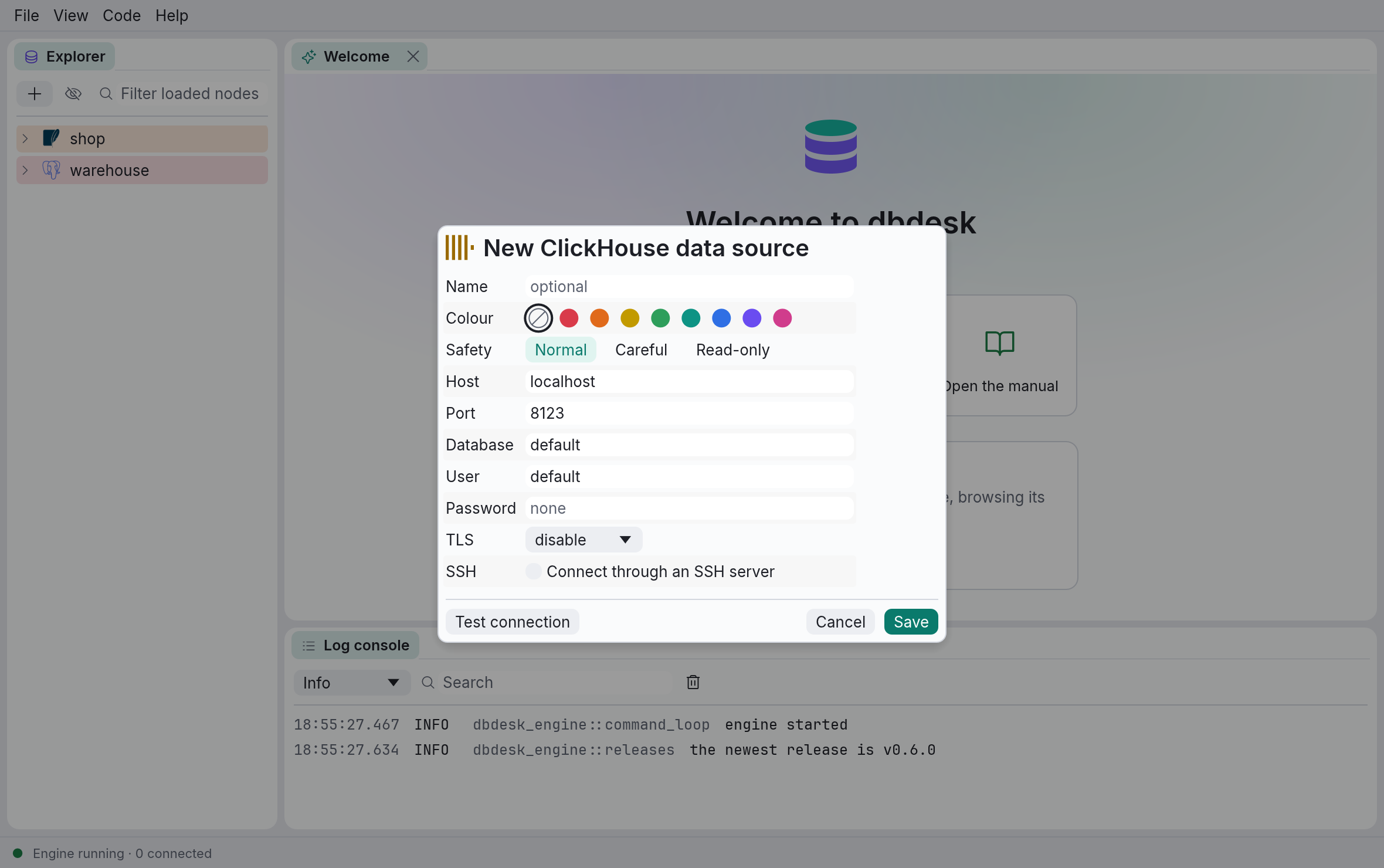

ClickHouse has the same fields, with these defaults:

ClickHouse serves HTTPS on a port of its own (8443) rather than offering encryption on the HTTP one, so there is no prefer: choosing require or verify-full moves the port to 8443, and disable moves it back, unless you typed a port of your own. ClickHouse Cloud only accepts HTTPS, with a publicly signed certificate, so verify-full with no CA file works there.

Test connection says which server it reached (“Connected to ClickHouse 25.8.33.6”).

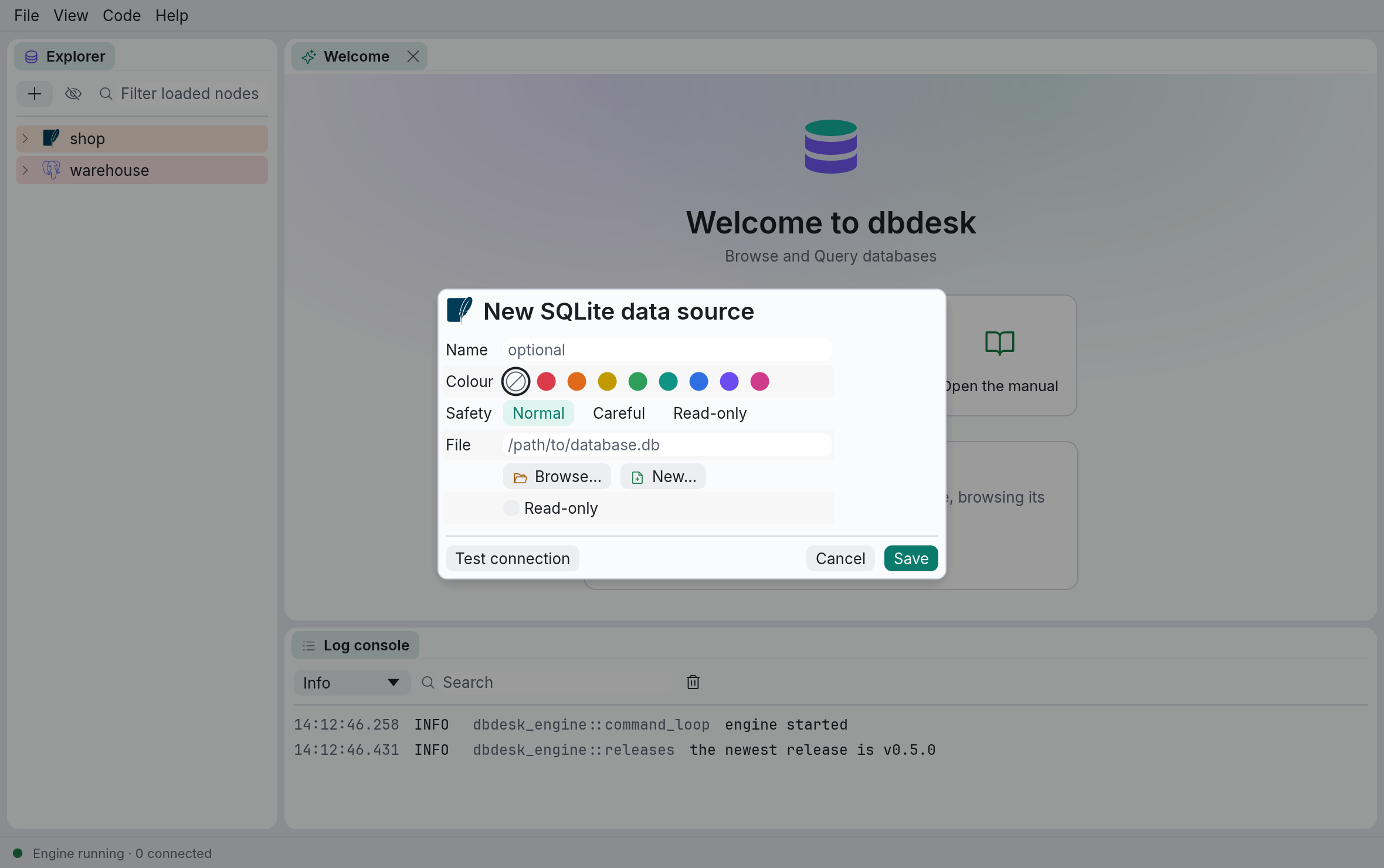

SQLite adds:

• File — the full path to the database file. Type or paste it, or use the buttons under the field:

  • Browse… opens your system’s file dialog to pick an existing database. It shows every file, because SQLite databases end in .db, .sqlite, .sqlite3 or nothing at all.
  • New… opens your system’s Save dialog and creates an empty database file where you choose, then fills in the path and clears Read-only. The message under the form says whether it worked; click Save to keep the data source. dbdesk never overwrites an existing file, even if the Save dialog asked whether to replace it and you said yes: pick another name instead.

  Connecting never creates a file, so a typo in the path is an error rather than a new, empty database. New… is the only way dbdesk creates one.

• Read-only — opens the file read-only. Statements that would change it fail with SQLite’s error.

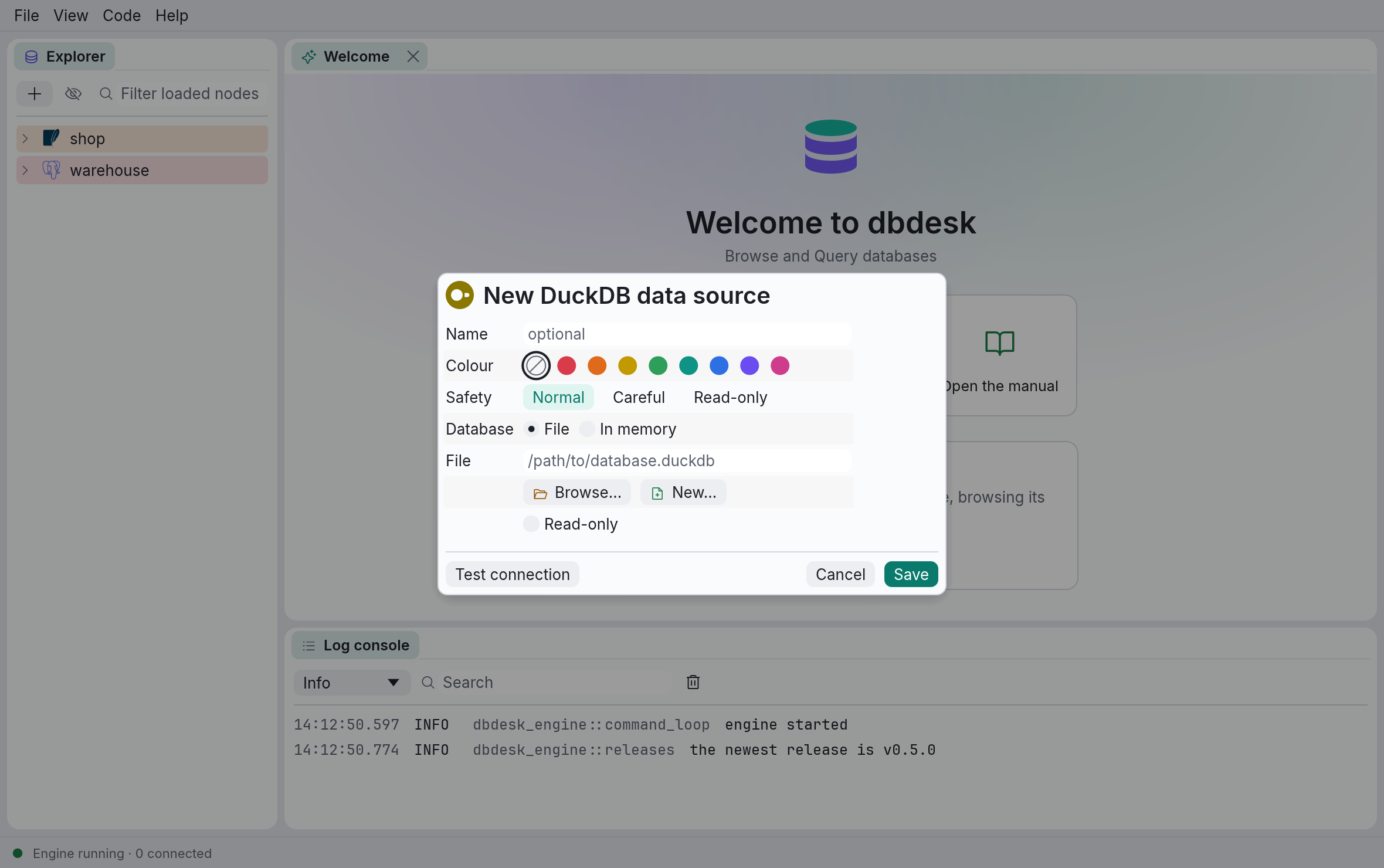

DuckDB has two kinds of database, chosen under Database:

• File — a DuckDB database file (.duckdb), with File, Browse…, New… and Read-only as for SQLite. Only one program at a time may have a DuckDB file open for writing, so connecting fails while another program (the duckdb command, say) has it open.
• In memory — an empty database that lives as long as the connection, for querying files rather than storing data: DuckDB reads CSV, Parquet and JSON files directly. Each console has its own, and everything created in it is gone when it disconnects.

DuckDB is part of dbdesk, so there is nothing to install. Test connection says which version it is (“Connected to DuckDB 1.5.6”).

SSH tunnels

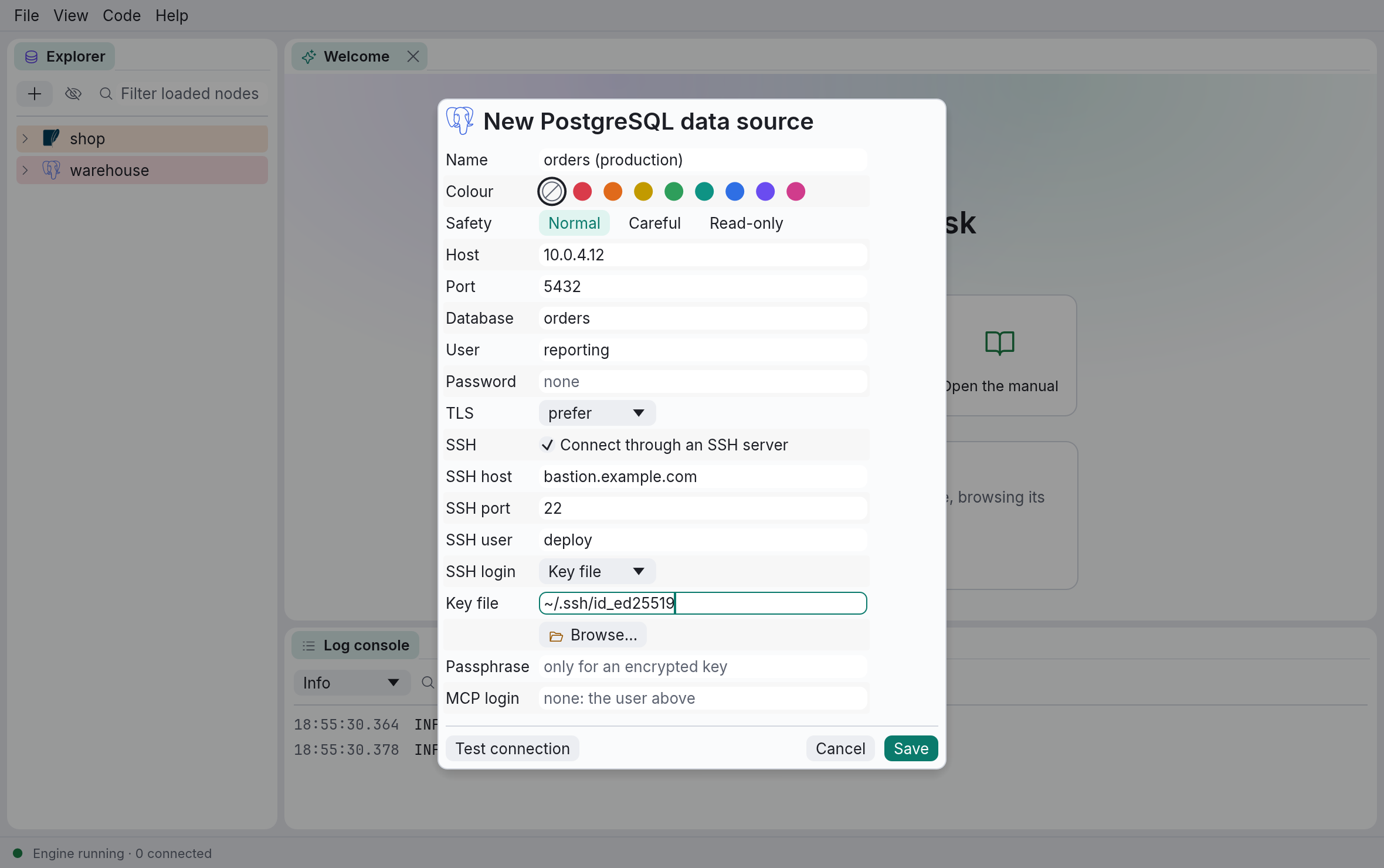

Many databases only accept connections from inside their own network, through a jump host (or bastion) you reach with SSH. Tick Connect through an SSH server and dbdesk opens an SSH tunnel for you before connecting: no ssh -L to run first, and nothing to install. Every server engine has it: PostgreSQL, MySQL and MariaDB, SQL Server and ClickHouse.

Host, Port and Database above stay the database’s own, as the SSH server sees it: often a private address such as 10.0.4.12, or localhost when the database runs on the SSH server itself. TLS still checks the database’s certificate against that host, so verify-full works through a tunnel too.

The ways to sign in:

• SSH agent uses the keys your running agent holds, as ssh does: the agent SSH_AUTH_SOCK names on macOS and Linux, and Windows’ OpenSSH agent or Pageant on Windows. Nothing is stored.
• Key file signs in with a private key. An encrypted key’s passphrase is asked for the first time it is needed, like a password, and kept in the keychain; an unencrypted key never touches the keychain.
• Password signs in with the SSH user’s password, kept in the keychain.

The SSH settings take placeholders like the server’s, and they travel in an export; the passphrase and password stay in each machine’s keychain.

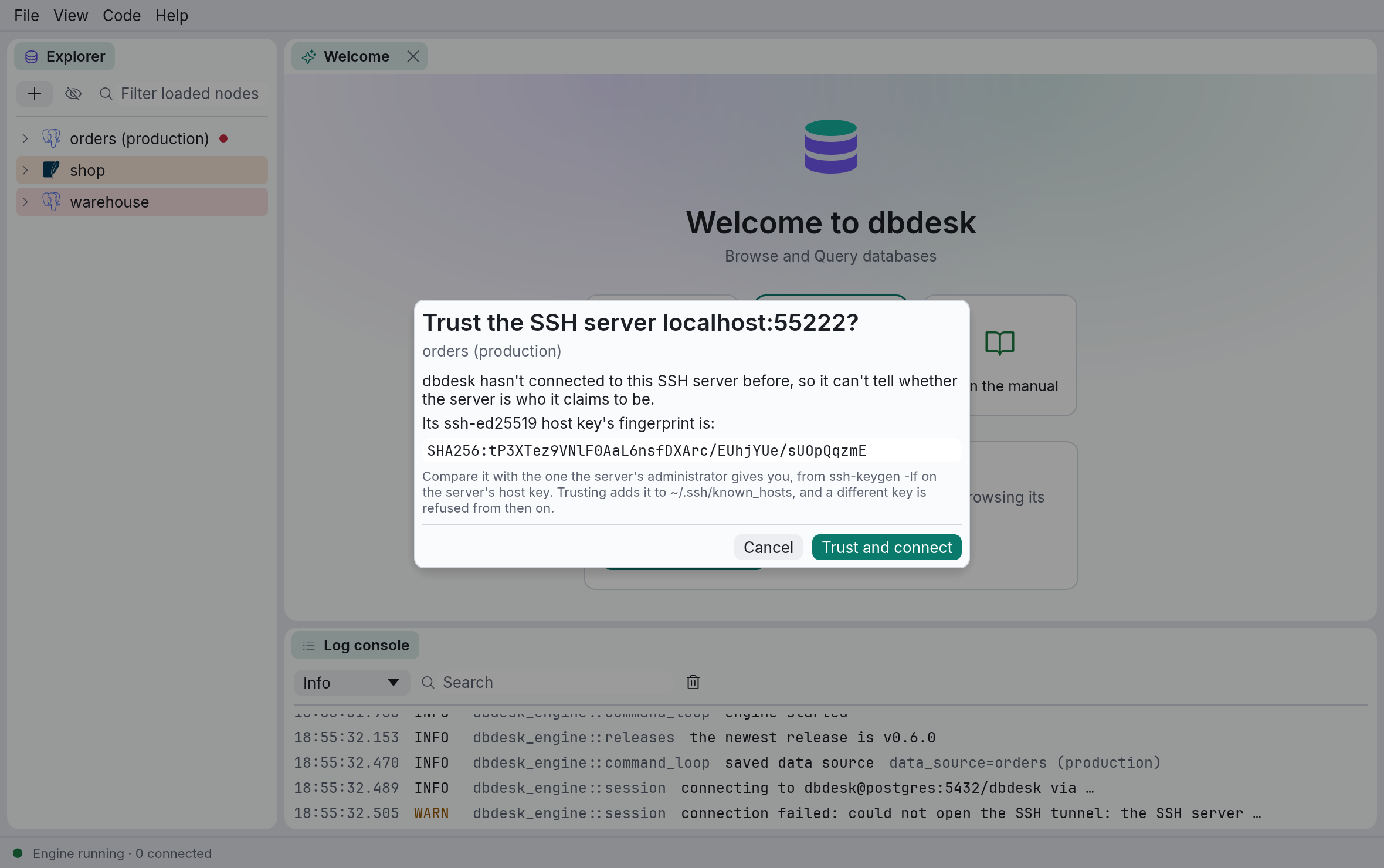

The SSH server’s host key is checked against ~/.ssh/known_hosts, the file ssh itself keeps, so a server you already reach with ssh is trusted by dbdesk too. The first time dbdesk meets one it doesn’t know, it shows the key’s SHA-256 fingerprint and asks. Compare it with the fingerprint the server’s administrator gives you (ssh-keygen -lf on the server’s host key): Trust and connect adds it to known_hosts and connects. A server whose key has changed since is refused, with the line of known_hosts to remove if the change was expected; see Troubleshooting.

A data source’s consoles and its explorer share one tunnel, which closes with the last of them.

Testing the connection

Test connection connects with what is in the form right now, checks the connection works, and disconnects. The result appears under the form (“Connected to PostgreSQL 17.6”, or the error) and in the log console. Nothing is saved by testing, not even the password.

Saving

Save checks the form and saves the data source. Required fields left empty, or a port that isn’t a number, show a message under the form instead. The dialog stays open until the save has gone through; if it fails, the reason is shown in the dialog.

Cancel, Esc or a click outside the dialog closes it without saving.

Safety levels

A colour only marks a data source. Its safety level decides what its consoles may change:

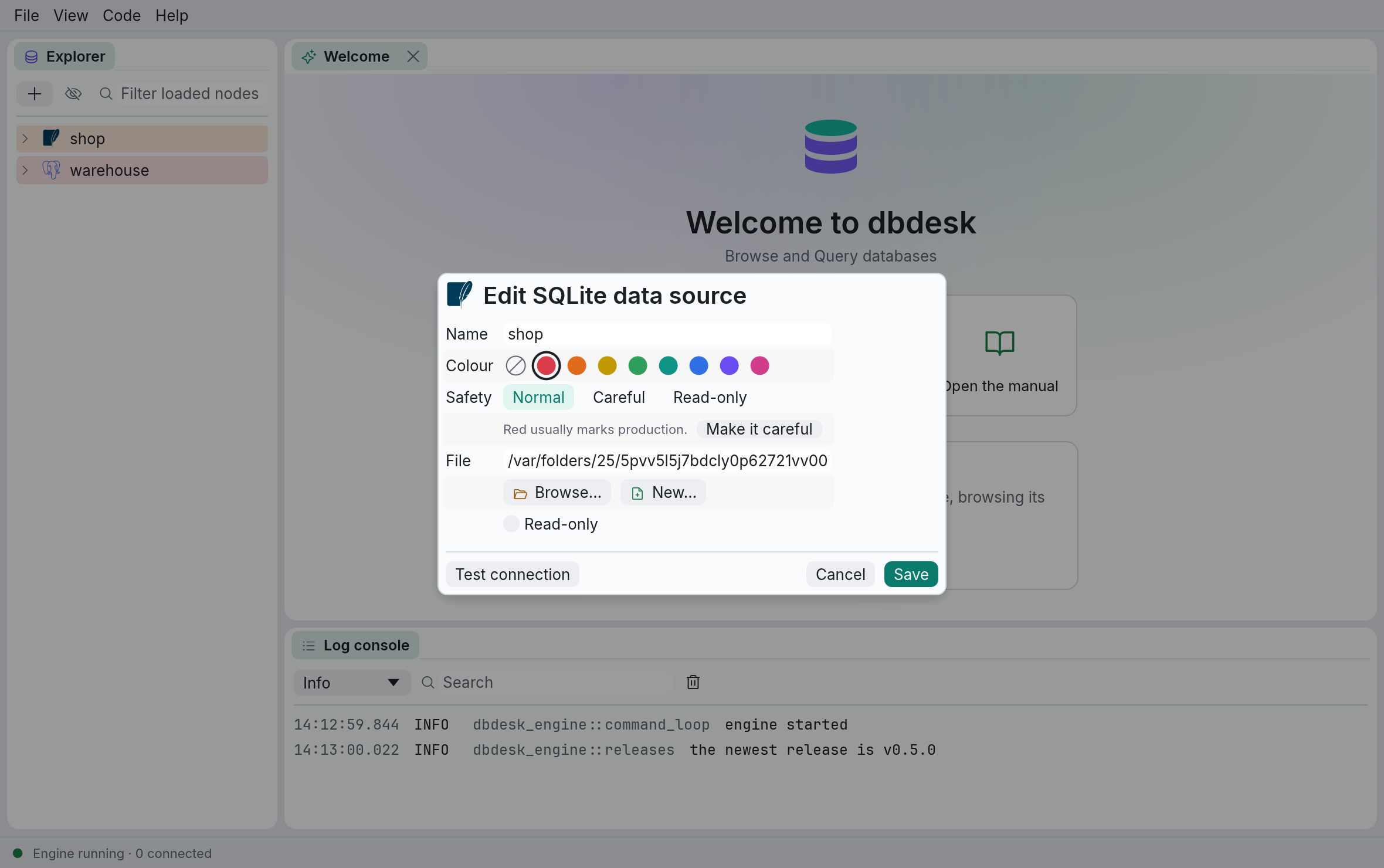

Picking red for a data source whose level is Normal suggests Careful, since red usually marks production; Make it careful takes the suggestion. The level is its own setting, so a red data source can stay Normal, and a careful one can be any colour.

Read-only uses the same checks as an AI assistant’s read-only projects (see Connecting an AI assistant):

• PostgreSQL runs each statement in BEGIN READ ONLY, MySQL and MariaDB in START TRANSACTION READ ONLY, rolled back once its rows are read. SQLite opens the file read-only.
• SQL Server, DuckDB and ClickHouse have no read-only mode dbdesk uses yet: statements are still checked, but a write inside a procedure or function isn’t stopped. The dialog says so. (A DuckDB file can also be opened with its own Read-only box ticked.)
• Anything that isn’t a plain read is refused, including SET, BEGIN and statements dbdesk can’t parse, since what they do can’t be told.

Placeholders: ${VARIABLE}

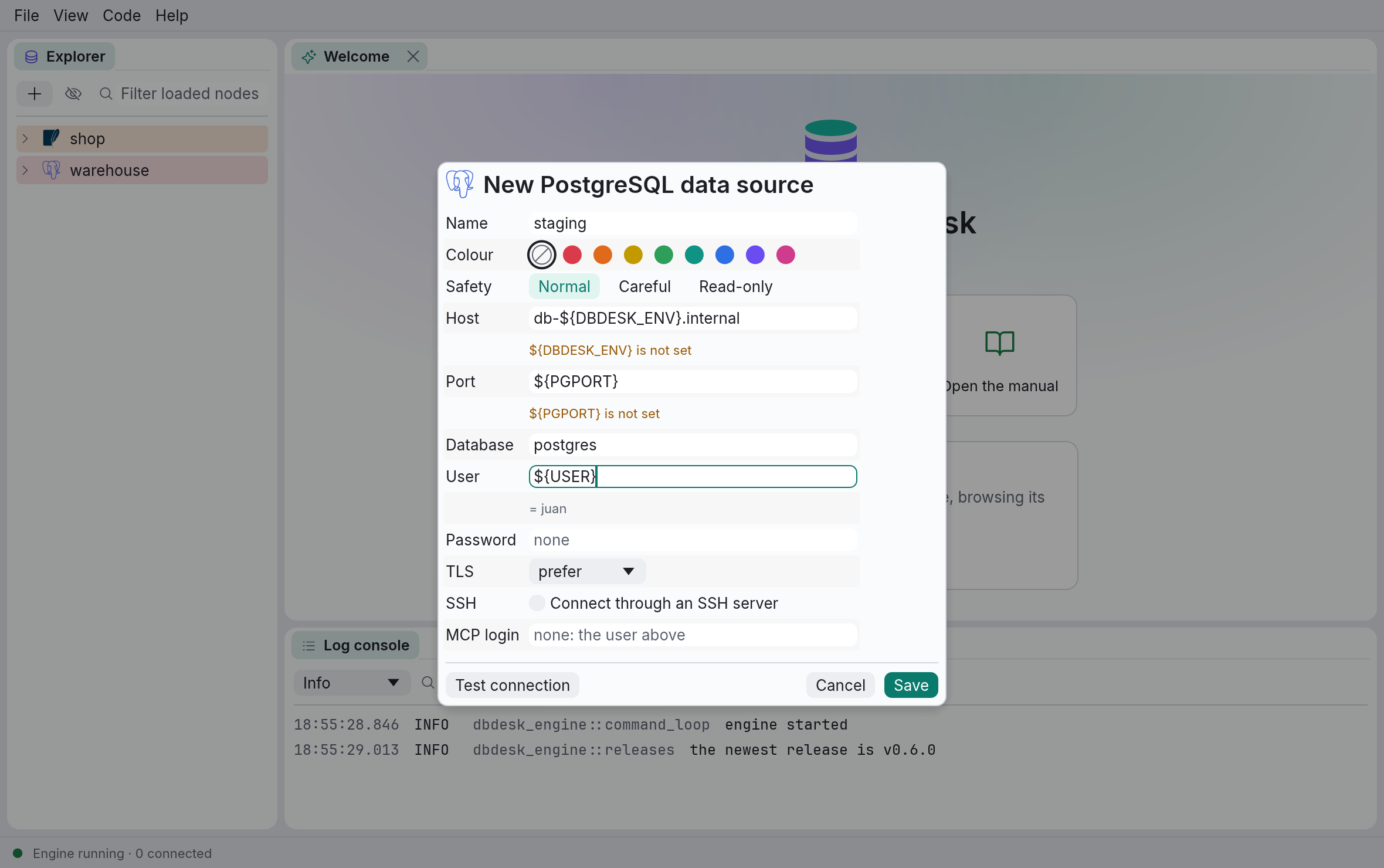

Host, port, database, user, a SQLite or DuckDB file and a CA file may hold ${NAME} placeholders, which dbdesk replaces with the environment variable NAME each time it connects. One shared list of data sources then works on machines whose settings differ: each machine sets PGHOST, say, and the data source’s host is ${PGHOST}. A placeholder can be part of a value (db-${ENV}.internal), and a path starting with ~ is in your home folder.

Under each field with a placeholder, the dialog shows what it resolves to now, or which variable isn’t set. Connecting with an unset variable stops with an error that names the setting: could not resolve the host: ${PGHOST} is not set.

Variables come from the environment dbdesk was started in. On macOS, an app opened from the Finder or the Dock doesn’t see what your shell profile sets; start it from a terminal (open -a dbdesk, after exporting the variables), or set them with launchctl setenv.

Passwords and the keychain

PostgreSQL, MySQL and SQL Server passwords are stored in your operating system’s credential store: the Keychain on macOS, Credential Manager on Windows, the Secret Service (GNOME Keyring, KWallet) on Linux. Each entry has the service name dbdesk and, as its account, the data source’s ID, a long string that never changes even if you rename the data source.

• When you save, a typed password is written to the keychain. When you edit a data source the password field is empty and says unchanged: leave it empty to keep the saved password, or type a new one to replace it.
• When dbdesk connects — the explorer, each console, and Test connection with an empty password field — it reads the password from the keychain. On macOS the system may ask whether to let dbdesk use it; see Troubleshooting.

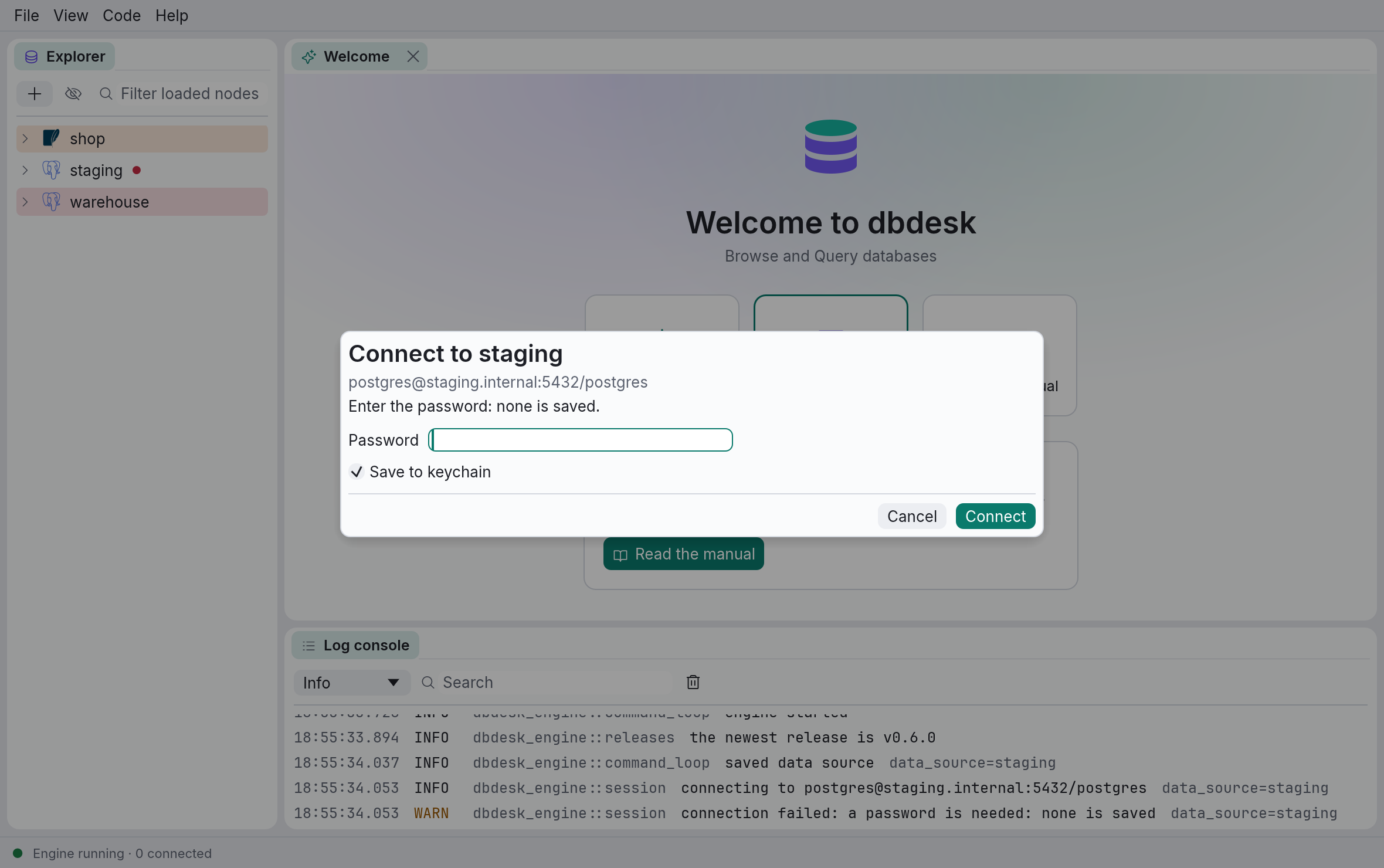

• When there is none, or the keychain can’t be read (locked, declined, or missing on this system), connecting asks for the password. Save to keychain is ticked, so you are asked once. Whatever you type is also kept in memory until dbdesk quits, so the data source still connects if the keychain refuses it or you untick the box. A server that needs no password (local trust login, say) works with the field left empty.
• When you delete a data source, its keychain entry is removed too.
• An MCP login’s password has an entry of its own, with the data source’s ID followed by /mcp as its account. Only dbdesk mcp reads it.
• An SSH password or key passphrase has one too, with /ssh after the ID. It is asked for, and saved, the same way as the database password.

SQLite data sources have no password, so dbdesk never asks the keychain for them.

Editing, connecting and deleting

Right-click a data source in the explorer for:

Hover over a data source to see its driver, where it connects to and its connection state. The dot after its name shows the state of the explorer’s connection: amber while connecting, green when connected, red when the last attempt failed, and no dot when disconnected. A failed connection’s error is in the tooltip and in the log console.
