The explorer

The explorer shows each data source as a tree. Nothing is loaded until you open it: expanding a node asks the database for that node’s children, and a spinner shows while it waits. Expanding a data source that isn’t connected connects it first.

Click the arrow before a node, or double-click its name, to expand or collapse it.

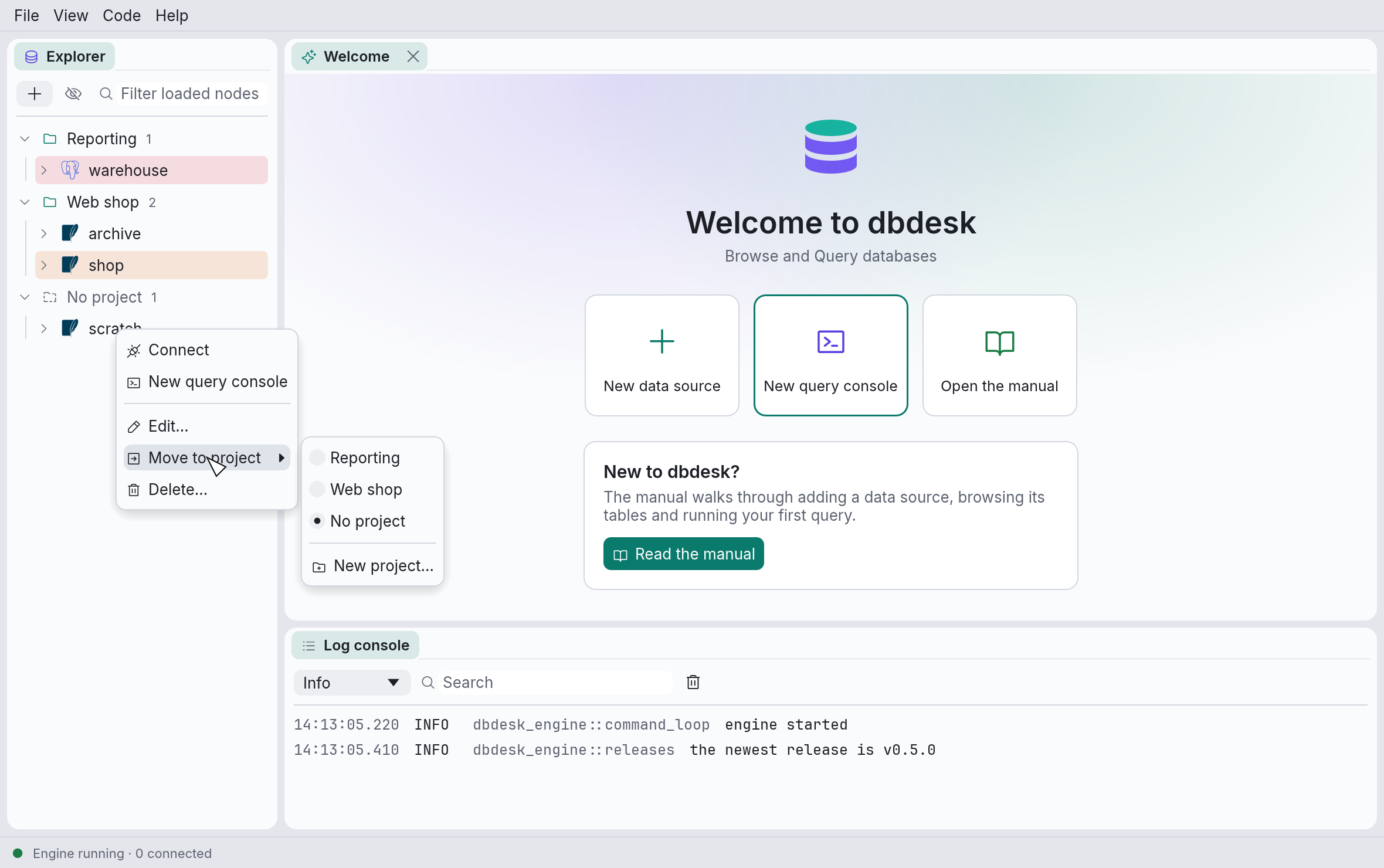

Projects

Projects group data sources, say one per application you work on. Once there is at least one project, the explorer shows each project as a header you can fold, with its data sources under it, and the data sources in no project under No project. With no projects, it lists the data sources on their own, as before.

• New project… is in the + menu, on every project header’s menu, and at the bottom of Move to project. From Move to project, the data source moves into the new project.
• Move to project › on a data source’s menu lists the projects and No project; the one it is in now is marked.
• Rename… on a project changes only its name.
• Delete… on a project moves its data sources to No project first. No data source is deleted.
• Project settings… on a project sets whether, and how, AI assistants may use its data sources; Copy MCP configuration copies what an assistant’s client needs to connect. See Connecting an AI assistant.

Each project also has a short slug, made from its first name: lower case, with hyphens for spaces (Web shop becomes web-shop). Hover over a project to see it. Renaming a project keeps its slug, so whatever refers to it by slug keeps working. A data source belongs to at most one project, and a project may hold data sources of any colour and engine.

What the tree contains

PostgreSQL

data source
├─ roles                  the server's users and groups (see Users and roles)
└─ database               every database on the server that accepts connections
   └─ schema
      ├─ tables
      │  └─ table
      │     ├─ columns    with their type, "not null" and "primary key"
      │     ├─ indexes
      │     ├─ constraints
      │     └─ triggers
      ├─ views
      ├─ materialized views
      ├─ functions        with their argument types, so overloads are told apart
      └─ sequences

SQLite

data source
└─ main
   ├─ tables
   │  └─ table
   │     ├─ columns
   │     ├─ indexes
   │     ├─ constraints   primary and foreign keys
   │     └─ triggers
   └─ views

MySQL and MariaDB, where a database and a schema are the same thing:

data source
└─ database               every database you may see, shown as a schema
   ├─ tables
   │  └─ table
   │     ├─ columns    with their type and "not null"
   │     ├─ indexes    with their columns, and whether they are unique
   │     ├─ constraints
   │     └─ triggers
   ├─ views
   ├─ functions
   ├─ procedures
   └─ events          scheduled with CREATE EVENT

SQL Server, which keeps schemas inside each database, as PostgreSQL does, and lets one connection browse them all:

data source
└─ database                 every database the login may open
   └─ schema
      ├─ tables
      │  └─ table
      │     ├─ columns      with their type, length and "not null"
      │     ├─ indexes      with their key columns, clustered or not, and whether unique
      │     ├─ constraints  primary key, unique, foreign key, check and default
      │     └─ triggers
      ├─ views
      ├─ functions
      ├─ procedures
      ├─ sequences
      └─ synonyms           with the object each one names

ClickHouse, where, as on MySQL, a database holds its tables directly:

data source
└─ database                 every database you may see, shown as a schema
   ├─ tables
   │  └─ table
   │     ├─ columns         with their type
   │     └─ indexes         data-skipping indexes, with their type and expression
   ├─ views
   ├─ materialized views
   │  └─ columns
   └─ dictionaries
      └─ columns

A ClickHouse table’s primary key is its sort order rather than an index, so it shows in the table’s definition, not under indexes. Functions aren’t listed: a ClickHouse function belongs to the whole server, not to one database.

DuckDB, where the database opened (named after its file, or memory) is listed with any attached with ATTACH:

data source
└─ database                 the one opened, and attached ones
   └─ schema                main, and any you create
      ├─ tables
      │  └─ table
      │     ├─ columns      with their type and "not null"
      │     ├─ indexes
      │     └─ constraints  primary key, unique, foreign key and check
      ├─ views
      ├─ functions          macros made with CREATE MACRO
      └─ sequences

Each kind of object has its own icon and colour, and folders that have been loaded show how many objects they hold (tables 5).

Browsing another PostgreSQL database than the one in the data source’s settings opens a separate connection to that database.

The context menu

Right-click an object for what you can do with it:

Below those come the object helpers, New › Table…, New index…, Rename…, Truncate…, Drop… and Drop index…, which Creating and changing tables describes, and those for views and schemas (New › View…, Edit…, Refresh…, New › Schema…, Drop schema…), which Views and schemas describes.

A data source’s own menu (Connect, New query console, Open saved console, Edit, Delete and so on) is described in Data sources.

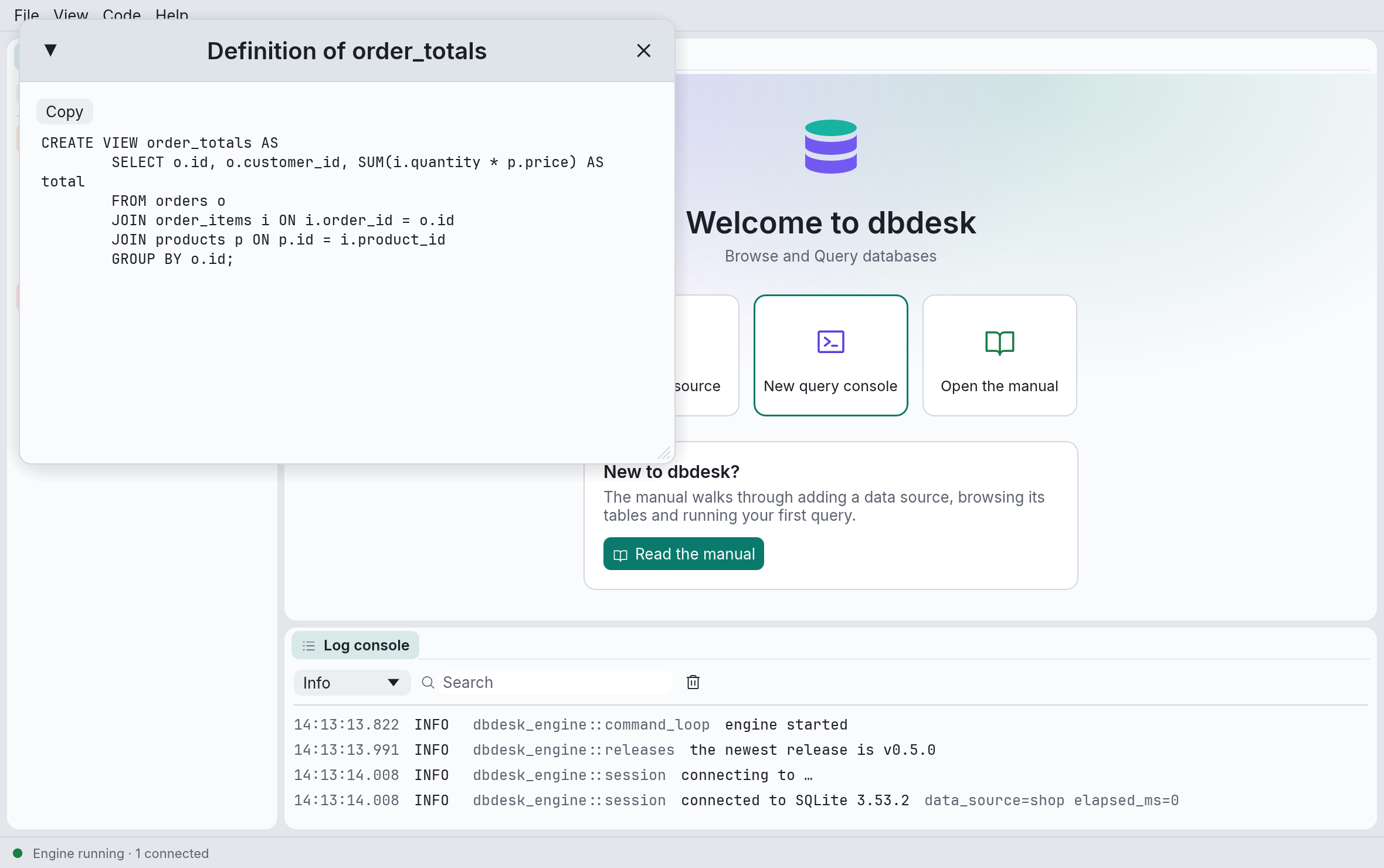

Definitions

Show definition opens a window with the object’s SQL, which you can select and copy with the Copy button.

Which objects have one depends on the database:

• PostgreSQL: views, materialized views, functions, indexes, constraints and triggers.
• SQLite: tables, views, triggers, and indexes created with CREATE INDEX (not the ones SQLite makes for primary keys and unique constraints).
• MySQL and MariaDB: tables, views, functions, procedures, events and triggers, as SHOW CREATE … gives them. A routine whose source you may run but not read shows a message instead.
• SQL Server: views, functions, procedures and triggers, as SQL Server stores their source (what OBJECT_DEFINITION returns), and synonyms. One created WITH ENCRYPTION, or that your login may run but not read, shows a message instead.
• DuckDB: tables, views, macros, indexes and sequences, as DuckDB keeps them. A macro’s definition is rebuilt from its parameters and body, one CREATE MACRO per parameter list.
• ClickHouse: tables, views, materialized views and dictionaries, as ClickHouse keeps their CREATE statement.

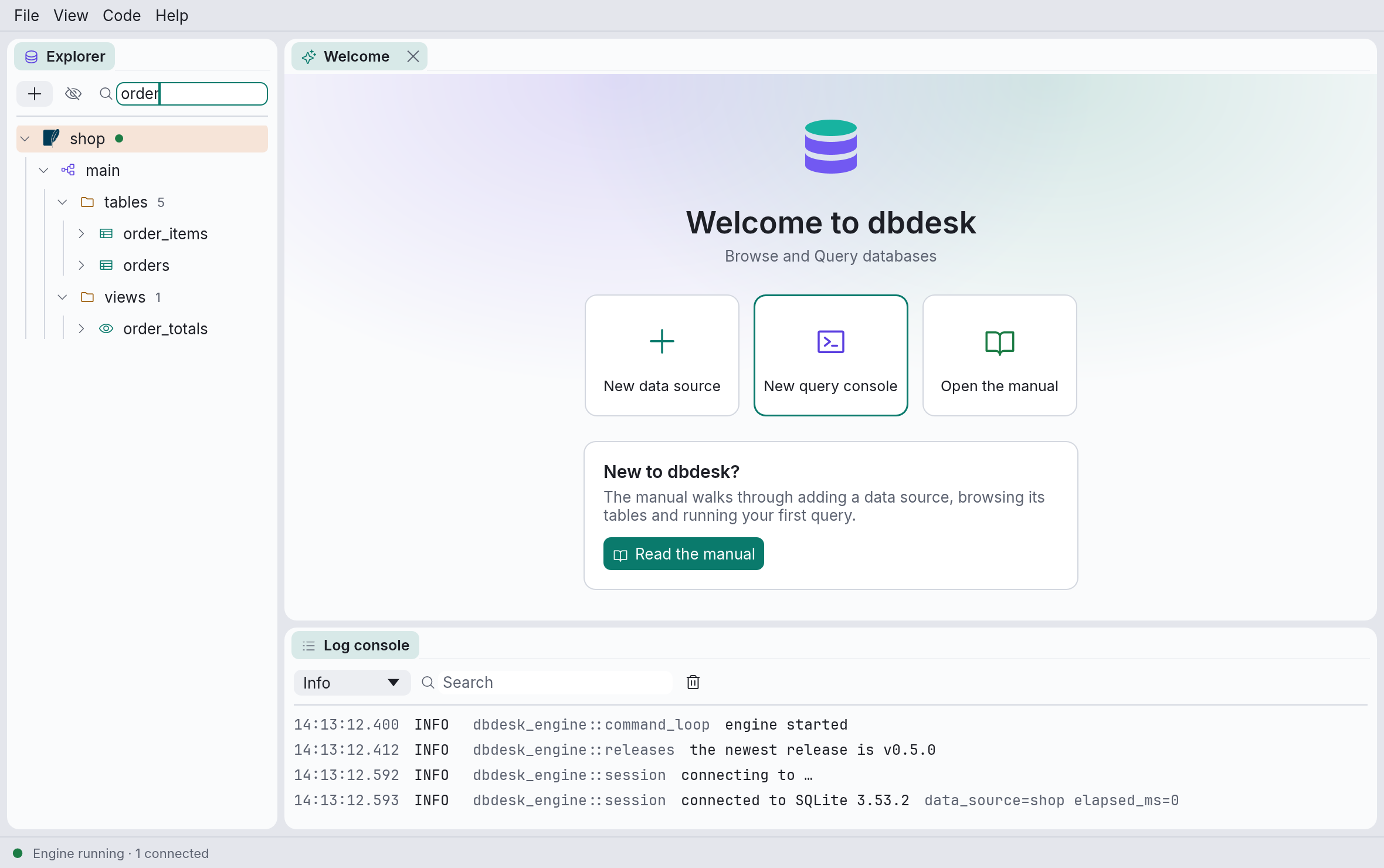

Filtering

Type in the box at the top of the explorer to filter the tree by name, ignoring case. An object that matches is shown with everything under it, and the nodes leading to it stay open even if they don’t match themselves. Data sources and projects are matched by name too: a project whose name matches shows all its data sources, and data sources and projects with nothing matching are hidden while you type.

The filter only searches what has already been loaded: it never asks the database for more. Expand the parts you want to search first.

System objects

The explorer hides each database’s own objects:

• PostgreSQL’s pg_catalog, information_schema and temporary schemas, and its predefined pg_ roles;
• SQLite’s internal sqlite_ tables;
• MySQL’s mysql, information_schema, performance_schema and sys databases;
• SQL Server’s master, model, msdb and tempdb databases, and in every database the sys, INFORMATION_SCHEMA and guest schemas and those of the fixed database roles;
• DuckDB’s system and temp databases, and its information_schema and pg_catalog schemas;
• ClickHouse’s system and information_schema databases (in either case), and the .inner tables where a materialized view without a TO table keeps its rows.

The eye button next to + shows or hides them, for every data source at once.

When the connection closes

Disconnecting forgets everything the explorer had loaded for that data source. It is loaded again, fresh, the next time you expand it. Refresh does the same for a single node while connected, which is how you see a table you just created.

A connection can also be lost: the server restarted, an administrator ended the session, or the network or SSH tunnel dropped. dbdesk notices when a request fails that way, and, before using a connection that has sat unused for a minute, by checking that it still answers. The data source’s dot turns red and its tooltip says Disconnected and why. The tree stays as it was, and the next thing you expand or refresh connects again by itself.
