Creating and changing tables

The explorer can create tables and indexes, and rename, empty and drop tables, without you writing the SQL. Each of these helpers is a small dialog that writes the statement, shows it to you, and runs it only when you click Execute. You can also take the SQL to a console and change it there first, or just copy it: the helpers are a quick way to learn how each database spells a statement.

Where to find them

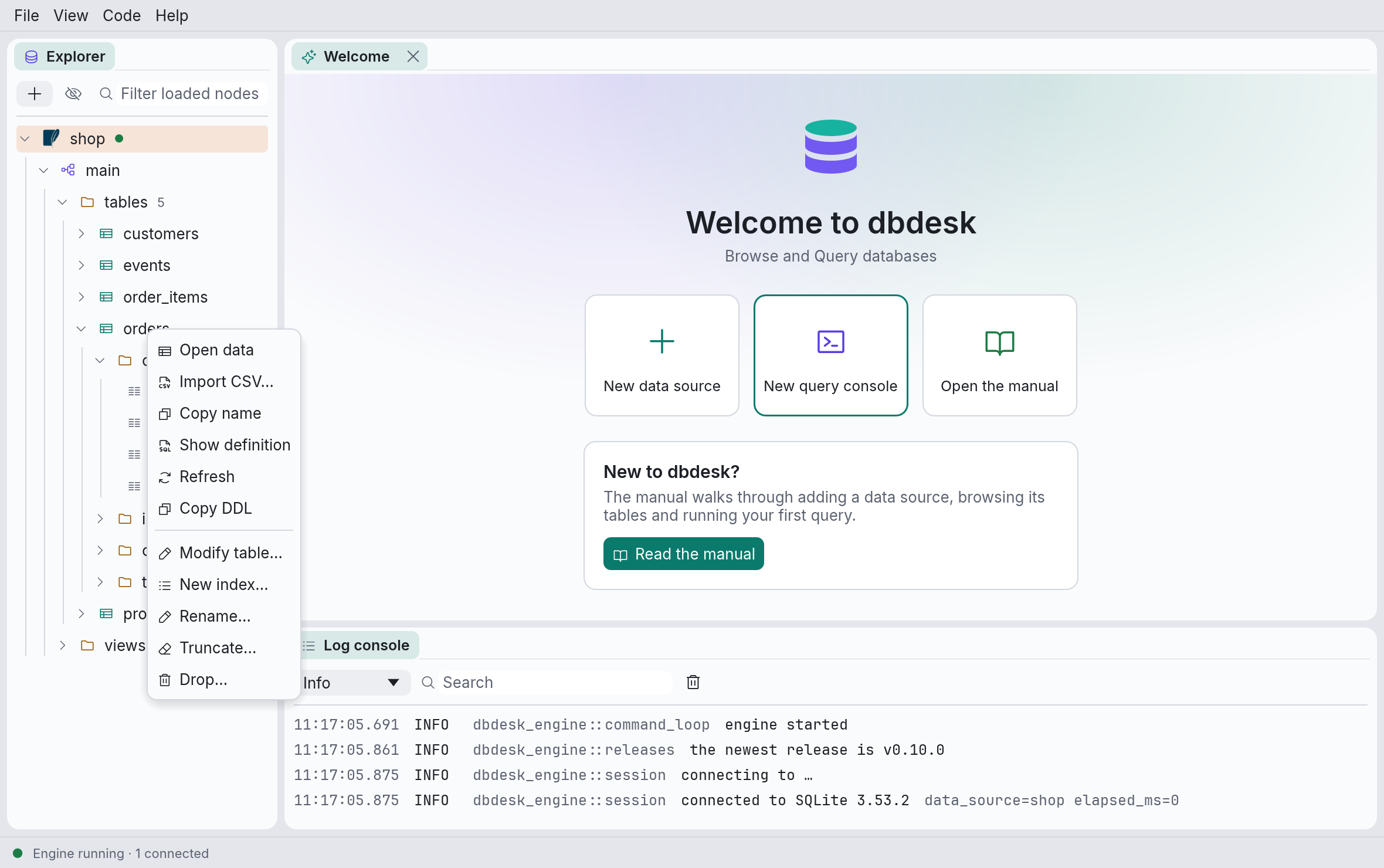

Right-click in the explorer. What the menu offers depends on what you clicked and on what the database can do:

• ClickHouse has no index helpers: its data-skipping indexes need a type and a granularity, which a later version will ask for.
• Copy DDL is offered where there is a CREATE TABLE statement to copy (see Copy DDL).
• Views, materialized views and schemas have helpers of their own: see Views and schemas.
• On PostgreSQL, SQL Server and DuckDB, the helpers appear only inside the database the data source connects to, which is where their statements run. Browse another database’s objects freely, but change them from a data source that connects to it.

Review and run

Every helper ends the same way, with the SQL it will run:

• Execute runs the statement. If the database refuses it, its error shows in red under the SQL and the dialog stays open, so you can fix what you typed and try again. Once it succeeds the dialog closes, and the explorer reloads the folder that changed and opens it, so you see the new table or index straight away.
• Open in console puts the SQL in a new console instead, to edit or run it there. The dialog closes.
• Copy copies the SQL.

The SQL changes as you fill in the dialog. While something is missing (a table name, a type, the columns of a key) the dialog says what instead of showing SQL, and Execute waits.

Names are quoted only when they need to be: when they have capitals, spaces or other characters a bare name can’t have, or are a word any of the databases dbdesk supports reserves, such as order or user. customer_id stays customer_id; Order Items becomes "Order Items" (`Order Items` on MySQL and ClickHouse, [Order Items] on SQL Server).

When a change does several things

Some changes take more than one statement. On PostgreSQL, SQLite, SQL Server and DuckDB they run in one transaction: if one fails, the ones before it are undone and nothing has changed. MySQL, MariaDB and ClickHouse commit each statement as it runs, so the panel warns you before you run several, and after a failure says how many of them stay applied.

Safety levels and colours

Helpers follow the data source’s safety level:

• Read-only: Execute is greyed out and the panel says why. Open in console and Copy still work, so you can take the SQL somewhere it may run.
• Careful: Execute asks once more, naming the data source, before anything runs.
• Normal: Execute runs at once.

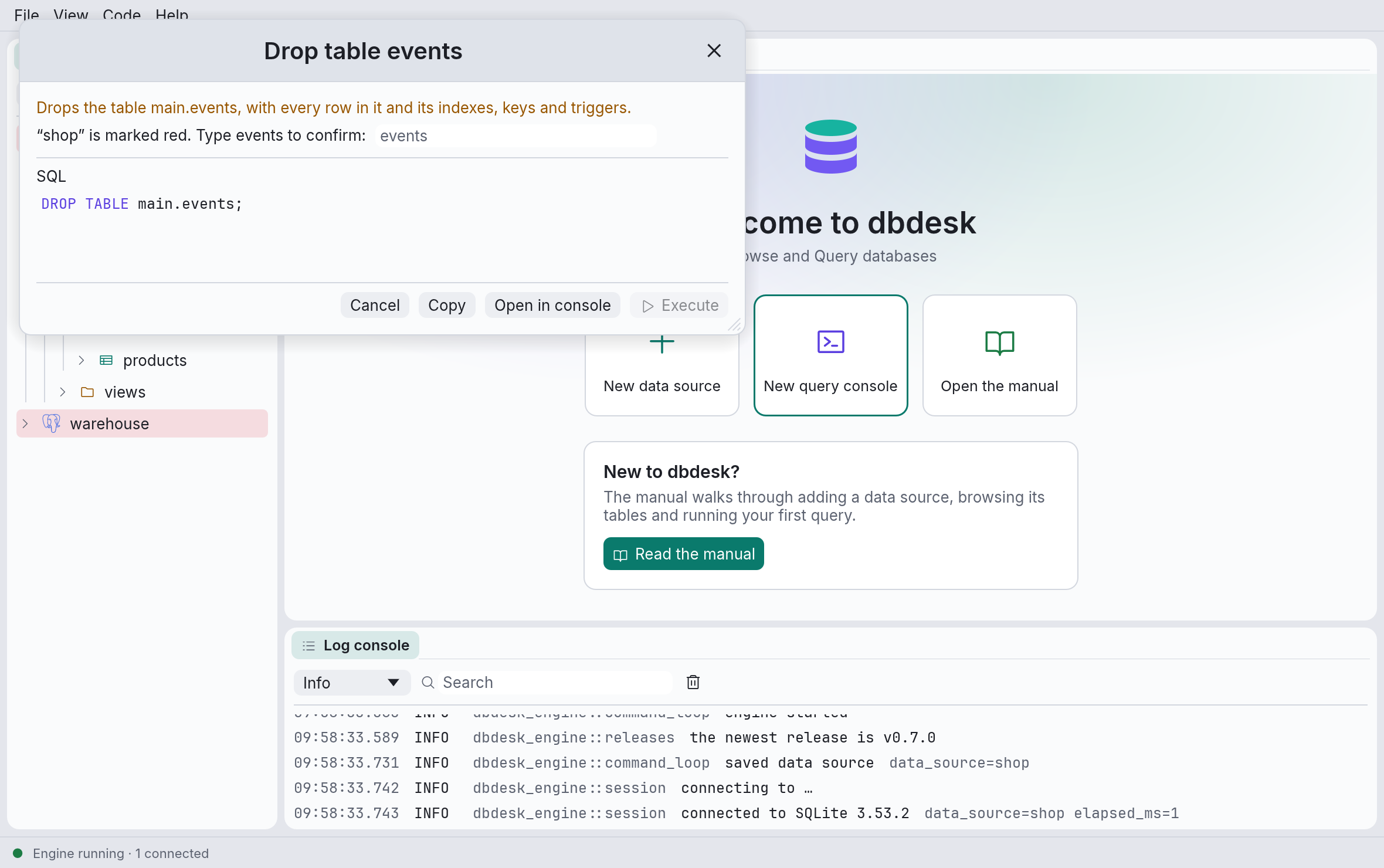

Truncating or dropping something says exactly what goes: the table and every row in it, with its indexes, keys and triggers. On a data source coloured red, the colour that marks production, you also type the object’s name before Execute can be clicked:

Every statement a helper runs is kept in the query history, like those you run in a console.

New table

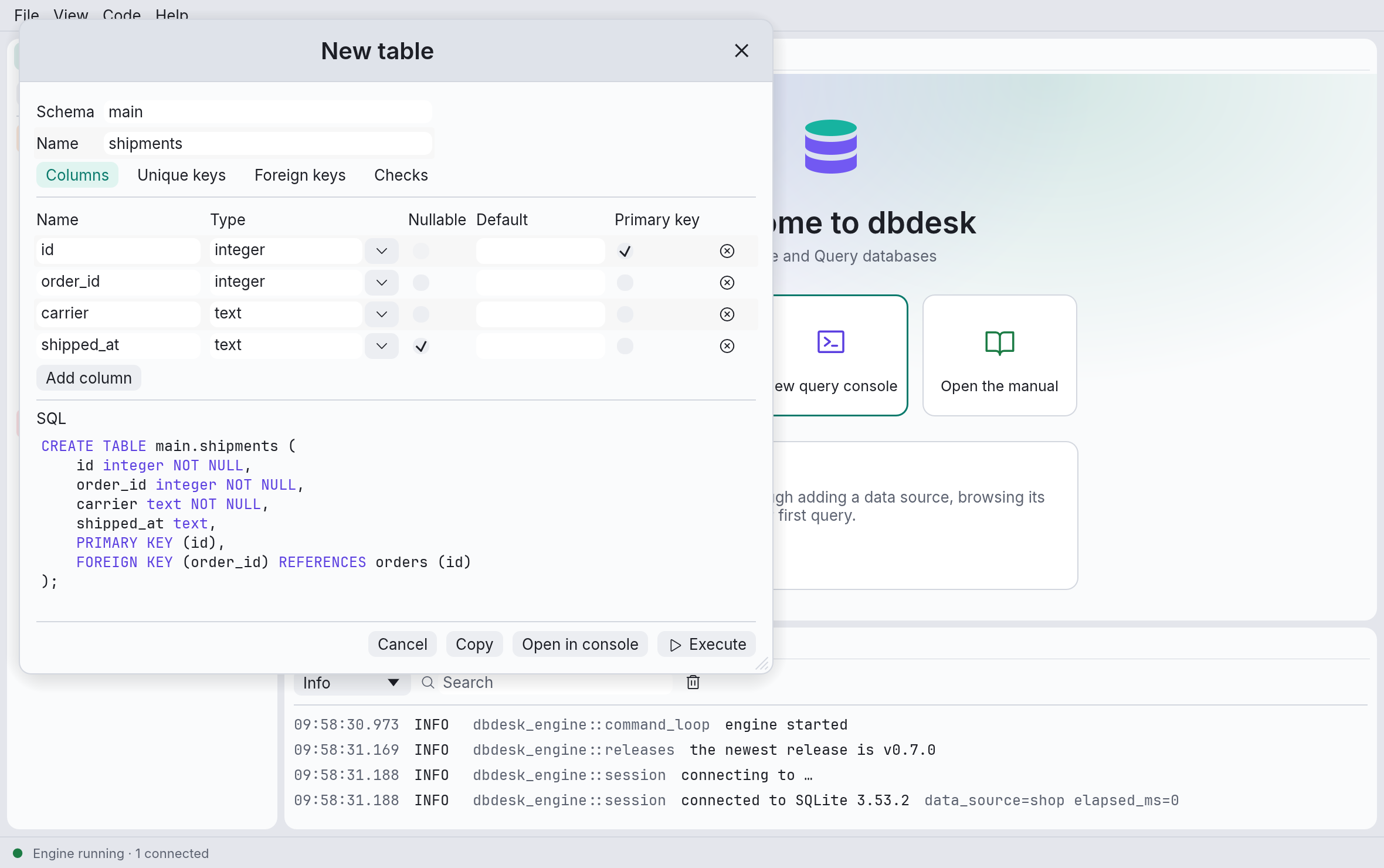

Right-click a schema, or its tables folder, then New › Table…. The dialog starts with one column, id, of the database’s most common type, as the primary key: change or remove it as you like.

• Schema and Name: where the table goes, and what it is called. The schema is the one you clicked.
• Columns, one row each:
  • Name.
  • Type, typed as the database spells it, so arrays, domains and extension types work too. The ▾ beside it lists the database’s common types (integer, text, timestamptz and so on on PostgreSQL; UInt64, String, DateTime on ClickHouse).
  • Nullable: whether the column may hold NULL. A primary key column never may.
  • Default: an SQL expression, written as it goes after DEFAULT: 0, 'new' (with quotes, for text), now(). SQLite and MySQL want parentheses around an expression that calls a function: (datetime('now')).
  • Primary key: tick each column of the key. The key’s columns are in table order.
  • Add column adds a row; the ✕ at the end of a row removes it.
• Unique keys: an optional name, and the columns that must be unique together, in the order you tick them.
• Foreign keys: an optional name, the columns, the table they point at, and that table’s columns, in the same order. The table is picked from those the explorer has loaded: expand a schema’s tables folder first to point at its tables, or pick This table for a key between the table’s own rows. Its columns load once you pick it. On delete and On update say what happens to these rows when the row they point at goes or changes: refuse (NO ACTION, the default), CASCADE, SET NULL and so on, as the database offers them.
• Checks: an optional name and a condition every row must meet, such as quantity > 0.

What differs between databases:

• ClickHouse has no unique or foreign keys, so those tabs aren’t shown. Its tables are created with the general-purpose MergeTree engine, sorted by the primary key’s columns (ORDER BY), and a nullable column’s type is wrapped in Nullable(…).
• DuckDB’s foreign keys only refuse a change: there is no On delete or On update.
• SQLite’s foreign keys can only point at a table in the same schema (the same database file). SQLite checks them only on connections that switch them on with PRAGMA foreign_keys = ON.
• SQL Server gets an explicit NULL on nullable columns, since whether a column is nullable by default there depends on the connection’s settings.

Modify table

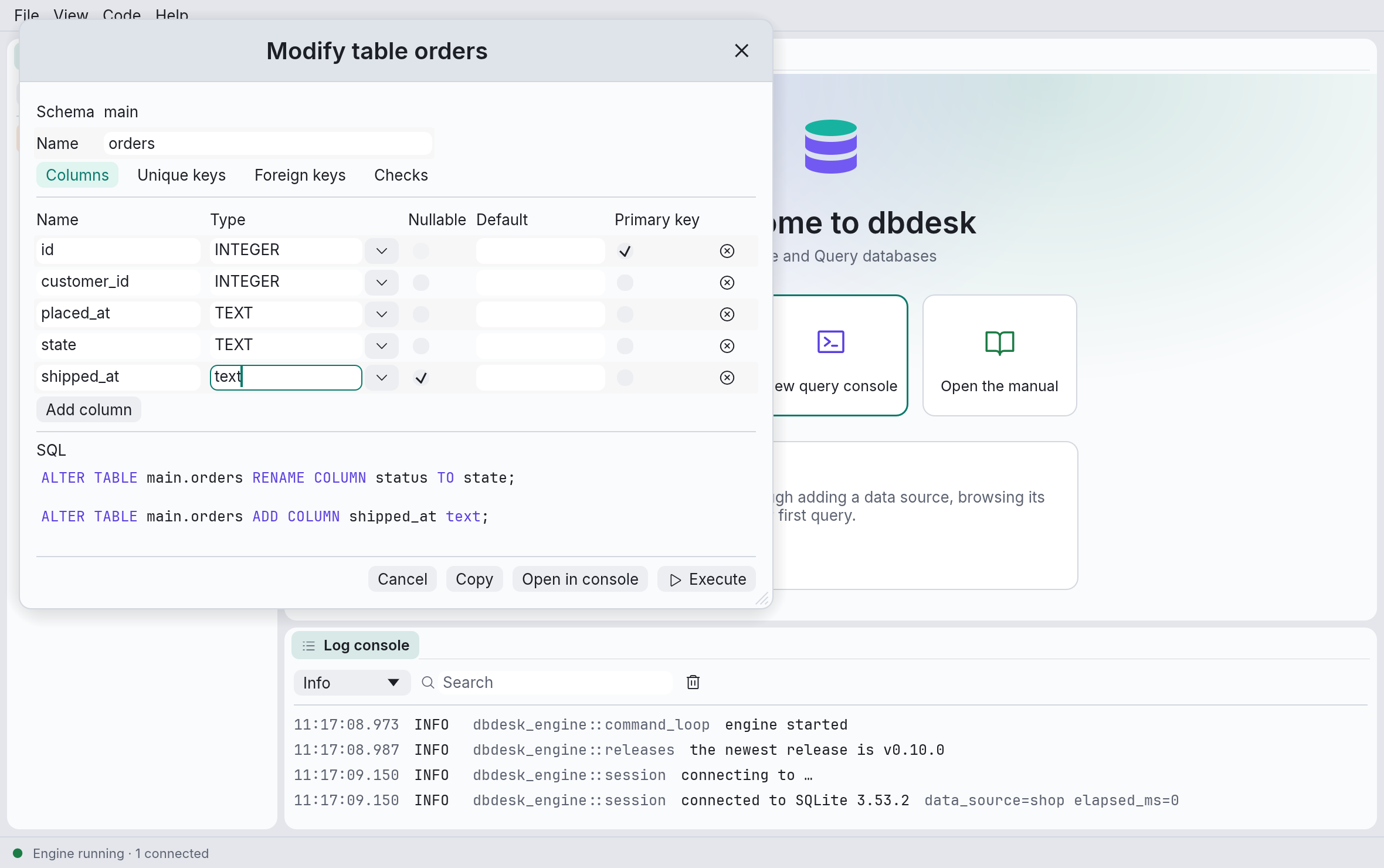

Modify table… on a table opens the New table dialog filled from the table as it is: its columns with their types, nullability and defaults, its primary key, and its unique keys, foreign keys and checks under the names the database gave them. Change what you like; the SQL below shows the statements that turn the table into what the dialog now says.

• Rename a column by typing its new name. dbdesk remembers which row each column came from, so this is always a rename that keeps the column’s values, never a drop and an add. Keys that list the column follow its new name.
• Drop a column with the ✕ at the end of its row, and add one with Add column. Dropping a column loses its values, so the dialog says which columns go before Execute, and on a red data source asks for the table’s name.
• Change a column’s type, nullability or default in its row. On PostgreSQL and DuckDB, a retyped column gets a USING field below the grid, for an expression that converts the old values (CASE status WHEN 'new' THEN 0 ELSE 1 END); left empty, the database converts them its own way, or refuses.
• Keys and checks: tick or untick primary key columns, and add or remove unique keys, foreign keys and checks in their tabs. One you leave alone is kept, even if one of its columns is renamed; one you change is dropped and added again.
• Rename the table with Name. The table stays in its schema.
• A column the database numbers itself (an identity or AUTO_INCREMENT column) says identity beside its type, and stays so.

The column order doesn’t change: a new column goes at the end. Statements run in an order that works everywhere: constraints that go are dropped first, then columns are dropped, renamed, added and changed, then the new keys and checks are added, and the table is renamed last.

Not every database can make every change in place. What one can’t do, the dialog says instead of showing SQL, and Execute waits; the rest of the change can still go to a console.

SQLite’s table rebuild

SQLite’s ALTER TABLE does little in place, so for anything else (a new type, a column made NOT NULL, a new key or check) dbdesk rebuilds the table the way SQLite’s documentation describes, in one transaction, and says so before Execute:

1. It creates the new table as new_orders, copies every row into it, drops the old table and gives the new one its name.
2. It creates the table’s indexes and triggers again, from their definitions.
3. Only then does it rename and drop columns, in place, so that SQLite itself updates the indexes, triggers, views and other tables’ foreign keys that name a renamed column, and refuses to drop a column one of them still uses.

Foreign keys are switched off while it runs, so dropping the old table can’t delete rows that point at it (ON DELETE CASCADE). If your connection had them on, dbdesk checks them before committing: a change that would leave a row pointing at nothing is undone, and the dialog names the table.

A rebuild writes the table from what dbdesk reads of it, so a table with something it can’t read back is refused, with the reason: a column with its own COLLATE, a generated column, a WITHOUT ROWID or a STRICT table. Make those changes in a console.

New index

New index… on a table, or New › Index… on its indexes folder.

• Columns: tick them in the order the index should have them.
• Unique: the index also refuses two rows with the same values.
• Method, where the database lets you choose: on PostgreSQL B-tree (the default), Hash, GIN (for arrays, jsonb and full-text search), GiST and BRIN; on MySQL and MariaDB, B-tree or Hash.
• Name: filled in from the table and columns (orders_customer_idx) until you change it.

Drop index… on an index drops it, after saying so. The table and its rows stay. An index that a primary key or unique constraint owns can’t be dropped on its own; the database’s error says so.

Rename, truncate and drop

• Rename… gives the table a new name in the same schema: ALTER TABLE … RENAME TO …, or RENAME TABLE on MySQL and ClickHouse, or sp_rename on SQL Server.
• Truncate… deletes every row and keeps the table. SQLite has no TRUNCATE, so it writes DELETE FROM the table, which does the same.
• Drop… drops the table. On PostgreSQL, Also drop what depends on it (CASCADE) drops the views that read the table and the foreign keys of other tables that point at it too; without it, PostgreSQL refuses while anything depends on the table.

Copy DDL

Copy DDL on a table copies its CREATE TABLE statement.

• SQLite, MySQL, MariaDB, DuckDB and ClickHouse keep the statement, so dbdesk copies theirs, the same one Show definition shows.
• PostgreSQL and SQL Server keep no such statement, so dbdesk writes one from the table’s columns (their types, defaults and NOT NULL) and primary key, the same way New table does, followed by an ALTER TABLE … ADD CONSTRAINT … for each of its unique keys, foreign keys, checks and (on PostgreSQL) exclusion constraints, as the database defines them. Running it recreates the table, identity columns included (PostgreSQL’s GENERATED … AS IDENTITY, SQL Server’s IDENTITY(seed, increment)). What it leaves out: indexes that aren’t constraints, comments, storage parameters and partitioning.
